ESP32-S2-DevKitM-1(U)

This user guide provides information on Espressif’s small-sized development board ESP32-S2-DevKitM-1(U).
本指南介绍了乐鑫的小型开发板 乐鑫esp32-wifi模组ESP32-S2-DevKitM-1(U)。

ESP32-S2-DevKitM-1(U) is a general-purpose development board based on ESP32-S2FH4 chip, which falls into ESP32-S2 chip family. With a rich peripheral set and optimized pinout, this board allows rapid prototyping.
乐鑫esp32-wifi模组ESP32-S2-DevKitM-1(U) 是一款基于 ESP32-S2FH4 芯片（ESP32-S2 系列）的通用型开发板。该款开发板具有丰富的外设和优化的引脚布局，令产品开发更快捷。

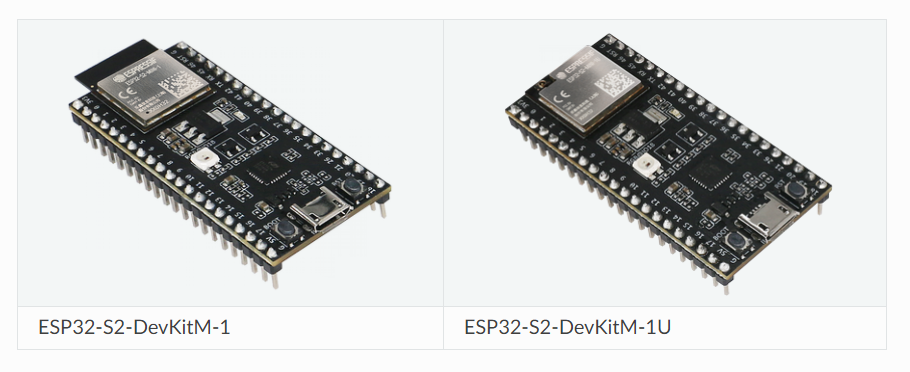

ESP32-S2-DevKitM-1 is embedded with ESP32-S2-MINI-1 module (on-board PCB antenna), while ESP32-S2-DevKitM-1U with ESP32-S2-MINI-1U module (U.FL connector to support external IPEX antenna).
ESP32-S2-DevKitM-1 搭载的是 ESP32-S2-MINI-1 模组 （PCB 板载天线），ESP32-S2-DevKitM-1U 搭载的是 ESP32-S2-MINI-1U 模组 （U.FL 座子连接外部 IPEX 天线）。

Overview
ESP32-S2-DevKitM-1(U) is entry-level development board equipped with either ESP32-S2-MINI-1 or ESP32-S2-MINI-1U module. Most of the I/O pins on the module are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S2-DevKitM-1(U) on a breadboard.

概述
乐鑫esp32-wifi模组ESP32-S2-DevKitM-1(U) 是乐鑫一款搭载 ESP32-S2-MINI-1 或 ESP32-S2-MINI-1U 模组的入门级开发板。板上模组大部分管脚均已引出至两侧排针，开发人员可根据实际需求，轻松通过跳线连接多种外围设备，同时也可将开发板插在面包板上使用。

Description of Components
组件介绍

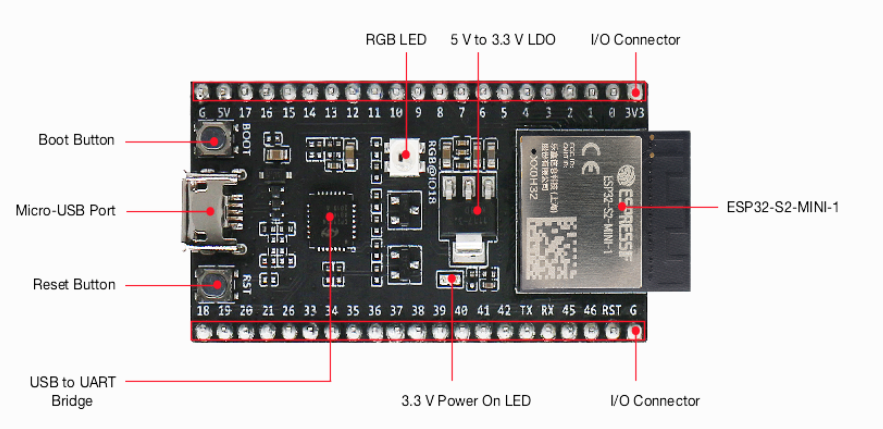

ESP32-S2-DevKitM-1 - 正面

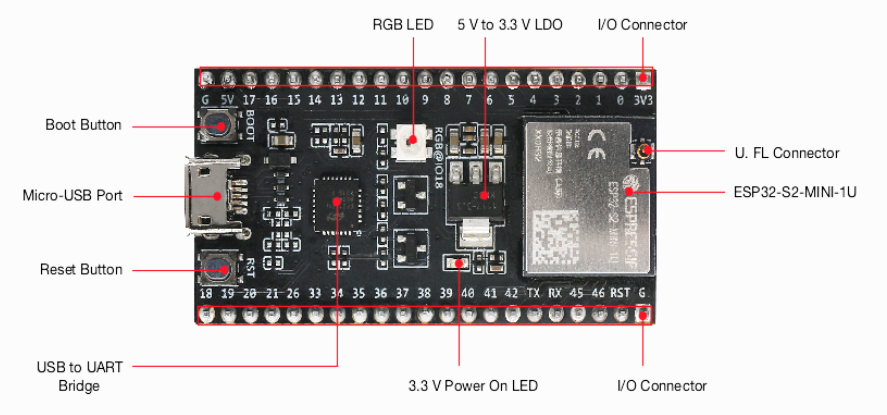

乐鑫esp32-wifi模组ESP32-S2-DevKitM-1U - 正面

Start Application Development
Before powering up your ESP32-S2-DevKitM-1(U), please make sure that it is in good condition with no obvious signs of damage.

开始开发应用
通电前，请确保 乐鑫esp32-wifi模组ESP32-S2-DevKitM-1(U) 完好无损。
Required Hardware
ESP32-S2-DevKitM-1(U)
For ESP32-S2-DevKitM-1U, an IPEX antenna is also required.
USB 2.0 cable (Standard-A to Micro-B)
Computer running Windows, Linux, or macOS
必备硬件
ESP32-S2-DevKitM-1(U)
如使用 ESP32-S2-DevKitM-1U，还需准备 IPEX 天线
USB 2.0 数据线（标准 A 型转 Micro-B型）
电脑 （Windows、Linux 或 macOS）

Hardware Reference
硬件参考
Block Diagram
功能框图

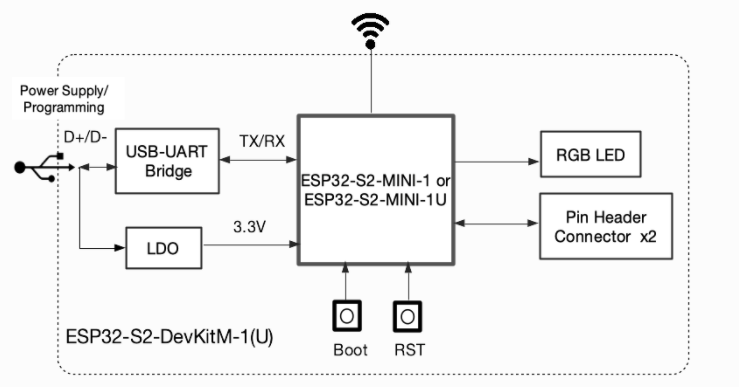

A block diagram below shows the components of ESP32-S2-DevKitM-1 and their interconnections.
ESP32-S2-DevKitM-1(U) 的主要组件和连接方式如下图所示。

乐鑫esp32-wifi模组ESP32-S2-DevKitM-1(U)

Power Supply Options
There are three mutually exclusive ways to provide power to the board:

Micro USB port, default power supply

5V and GND header pins

3V3 and GND header pins

It is recommended to use the first option: micro USB port.

乐鑫esp32-wifi模组电源选项
您可从以下三种供电方式中任选其一给 ESP32-S2-DevKitM-1(U) 供电：
Micro USB 端口供电（默认）
5V 和 GND 管脚供电
3V3 和 GND 管脚供电
建议选择默认供电方式：Micro USB 端口供电。
